How do I print a model in AutoCAD?
PRINTING: To print, simply right click on the Layout tab and click Plot. The Plot box will come up (see Image right ) which should have the correct settings from before when editing the Page Setup Manager.
What is one purpose to print model space?
For a 2D drawing that has one view, you could create both the model and its annotation entirely in model space, without using a layout. Scaling the annotation and title block requires computation unless you use annotative objects.

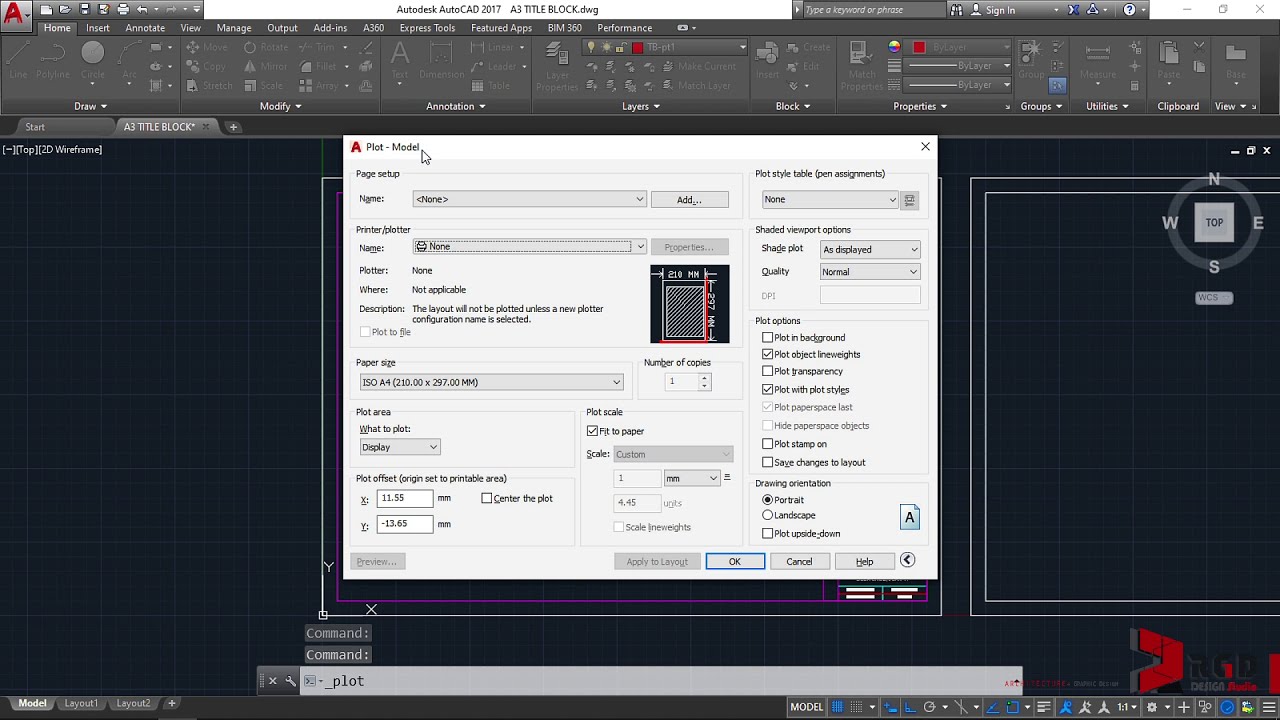

Plotting Drawings from Model Space in AutoCAD
Images related to the topicPlotting Drawings from Model Space in AutoCAD
When printing from model space the scale setting should be set to?
Generally, it’s recommended to use the model space to draw in actual size (or in 1:1 scale).
How do you print multiple sheets from model space in AutoCAD?
Click the Application icon (top left) > Print > Batch Plot. Choose Plotter named in page setup. Rename the <DrawingName> Drawing-Model sheet to your first sheet name. Then select the corresponding Page Setup from the Page Setup dropdown list.
How do you plot a scale?
- Click a layout tab. …
- Select a viewport. …
- Open the Properties palette on the View tab, in the Palettes group, or use the keyboard shortcut, which is Ctrl+1.
- Under the Misc heading, click the Standard Scale item; then click the down arrow to expand the list of scales.
How do I print to A4 in AutoCAD?
- Type “PLOT” command, a dialogue box will appear…
- In the Paper Size select “ISO A4” (either Landscape/Portrait, whatever you want)…
- In the Scale option select either “Fit to Paper” or round it off a little bit and type your own, the actual is already written there…
How do you change from model space to paper space in AutoCAD?
If you are in model space and want to switch to another layout viewport, double-click within another layout viewport, or press Ctrl+R to cycle through the existing layout viewports. To return to paper space, double-click anywhere outside the layout viewport.
How do I print a3 size in AutoCAD?
In the Page Setup Manager, Page Setups area, select the page setup that you want to modify. Click Modify. In the Page Setup dialog box, under Paper Size, select a paper size from the list. Click OK.
Autocad – Printing from Model Space #25
Images related to the topicAutocad – Printing from Model Space #25
How do I print multiple PDF layouts in Autocad?
- Hold the Shift key down and click to select the layout tabs.
- Right click and select Publish Selected Layouts.
- In the Publish dialog box, select PDF from the Publish To: drop-down list and click Publish.
How do I print multiple large pages on one sheet?
The Multipage printing feature enables to split a large format drawing across multiple pages as “tiles” and print them. For example, if you do not have a plotter, you can print an A1 drawing on A4 sheets and then piece them together. Open your file, go to the Output tab and activate the Multipage printing command.
Why are my dimensions not printing in AutoCAD?
Check the Shade Plot setting in the plot options and change it from As Displayed to Wireframe. Check for layer states that could be overriding or misapplying layer settings. On the command line in AutoCAD, enter the LAYERSTATE command. Select a different layer state and click Restore.
How do I get a 1 1 printout?
- Verify the printer, paper size, and paper orientation by going to File > Print Setup.
- Go to File > Print Preview. This will allow us to preview the print out before sending it to the printer.
- Disable Fit to Page. …
- Disable Use model extents. ( …
- Set the scale to In the Printout = 1in and In SketchUp = 1in.
How do I print layout?
- Select File > Page Setup to check your page setup options.
- Preview your printout.
- Select File > Print to select your final print options and send your presentation to the printer.
How do I print to PDF in AutoCAD?
- Near the bottom-left of the drawing area, click the layout tab.
- Click Output tab Plot panel Plot. …
- In the Plot dialog box, under Printer/Plotter, in the Name box, select the most appropriate AutoCAD PDF plotter configuration (PC3 file) for your requirement.
Plotting AutoCAD Drawings – pt1 (Direct from Model Space)
Images related to the topicPlotting AutoCAD Drawings – pt1 (Direct from Model Space)
How do I print to scale in AutoCAD 2021?
- Click Output tab Plot panel Plot. Find.
- In the Plot dialog box, under Plot Scale, select the Fit to Paper option. The resulting scale is automatically calculated. The ratio of plotted units to drawing units in the custom scale boxes is displayed.
- Click OK to plot the drawing.
How do I scale a drawing in AutoCAD layout?
- Select the layout viewport that you want to modify.
- Right-click, and then choose Properties.
- If necessary, click Display Locked and choose No.
- In the Properties palette, select Standard Scale, and then select a new scale from the list.
